 Post subject: Can a variable condenser be accurately measured???
PostPosted: Mar Sun 18, 2012 9:13 pm
Member

Joined: Jun Sat 02, 2007 1:37 pm
Posts: 1348
Location: Ennismore, Ontario

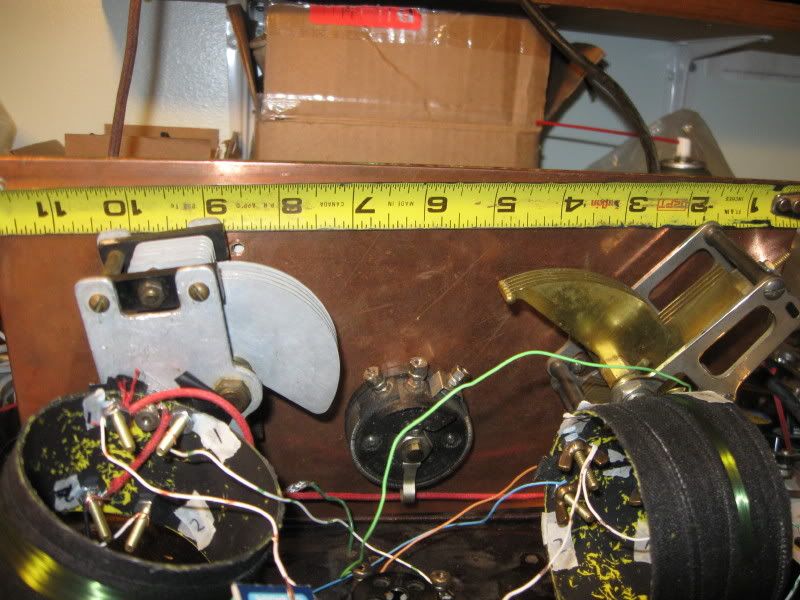

I am working on a One tube reflex project from the mid 20's and the call is for .0005 mfd variable condensers. I have a couple kicking that I used but don't know if they are the correct value. Can I accurately attach my Cap meter and read their result?

_________________
Brian

I came into this world with nothing...
I have been able to keep most of it.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Sun 18, 2012 9:45 pm
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 1051
Location: Dallas, Texas USA
amyotte wrote:
I am working on a One tube reflex project from the mid 20's and the call is for .0005 mfd variable condensers. I have a couple kicking that I used but don't know if they are the correct value. Can I accurately attach my Cap meter and read their result?


Sure it can be measured.
I use a home-brew L-C meter that I built - it'll show the thing vary as you turn the shaft...

And .0005 mfd - that's basically 500 pf, which is not much more than the usual variable capacitor that you can still finde (Midnight Science: http://midnightscience.com/catalog5.html ). Perhaps a bit bigger....

Mike Y
KM5Z


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Sun 18, 2012 9:56 pm
Member
User avatar

Joined: Apr Tue 27, 2010 12:02 am
Posts: 390
Location: Madison, WI
.0005 mfd condensers were typically 23 plate, +- a few.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Sun 18, 2012 10:49 pm
Member

Joined: Jun Sat 02, 2007 1:37 pm
Posts: 1348
Location: Ennismore, Ontario
Jon the Grimm wrote:
.0005 mfd condensers were typically 23 plate, +- a few.


When you say plates do you count all the plates? Just the Stator or just the Rotor?

All plates counted I am using would be 9 and 11.

_________________
Brian

I came into this world with nothing...
I have been able to keep most of it.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Sun 18, 2012 11:05 pm
Member

Joined: May Tue 30, 2006 4:46 pm
Posts: 5732
Location: Santa Rosa, CA
Count just one set of plates... either stator or rotor.

Your count would indicate a considerably lower capacitance than 500 pF, unless your plates are huge.

Rich


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 12:53 am
Member

Joined: Jun Sat 02, 2007 1:37 pm
Posts: 1348
Location: Ennismore, Ontario
Rich, W3HWJ wrote:
Count just one set of plates... either stator or rotor.

Your count would indicate a considerably lower capacitance than 500 pF, unless your plates are huge.

Rich


The plates are different sizes and shapes...


_________________
Brian

I came into this world with nothing...
I have been able to keep most of it.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 3:02 am
Member
User avatar

Joined: Apr Tue 27, 2010 12:02 am
Posts: 390
Location: Madison, WI
Those are less than 500 pf.


Last edited by Jon the Grimm on Apr Sat 14, 2012 3:03 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 1:15 pm
Member

Joined: May Tue 30, 2006 8:34 pm
Posts: 169
Location: Akershus, Norway
amyotte wrote:
Can I accurately attach my Cap meter and read their result?

If it's a dedicated LCR meter you can.
If it's the capacitance range on your multimeter - not likely, since these rarely measures any capacitance under 1000pF accurately.
If you do not have a dedicated LCR meter and want a circuit for a simple capacitance bridge, let me know so I can post some pictures.

The capacitors seems to be something in between 100 - 150pF.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 4:21 pm
Member

Joined: Jun Sat 02, 2007 1:37 pm
Posts: 1348
Location: Ennismore, Ontario
Rune wrote:
amyotte wrote:
Can I accurately attach my Cap meter and read their result?

If it's a dedicated LCR meter you can.
If it's the capacitance range on your multimeter - not likely, since these rarely measures any capacitance under 1000pF accurately.
If you do not have a dedicated LCR meter and want a circuit for a simple capacitance bridge, let me know so I can post some pictures.

The capacitors seems to be something in between 100 - 150pF.


Please post the info on the capacitance bridge.

_________________
Brian

I came into this world with nothing...
I have been able to keep most of it.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 4:33 pm
Member

Joined: May Tue 30, 2006 4:46 pm
Posts: 5732
Location: Santa Rosa, CA
I was surprised that a cheap DMM, the Harbor Freight 37772, reads within 5% on a 100 pF silver mica capacitor.

http://www.antiqueradios.com/forums/vie ... p?t=153210

These are usually on sale for about $20-25 and will be good enough to give you are working value for your variable cap. Just mesh the plates fully closed and connect it to the meter in its lowest capacitance range.

My meter has about 30 pF of "stray" capacitance due to calibration and the long leads, so I just subtract that from whatever reading I get. When you turn on the meter with nothing connected, the value on the display is the "error" and needs to be subtracted from readings of actual parts. It doesn't make any difference if you are measuring a 1 microfarad cap.

Rich


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 7:17 pm
Member

Joined: May Tue 30, 2006 8:34 pm
Posts: 169
Location: Akershus, Norway
I'll try to do this as short as I can, so if I have forgotten something; ask.


Hint: The 470p capacitor needs to be 5 percent or better. A ceramic NP0, mica or styroflex will work well.

Yes,I know it looks totally ridiculous, but the circuit works surprisingly good, and as is with the values shown it will measure from about 30pF up to 800 or so with 2 percent accuracy. You put the values of R1 and R2, in kilo-Ohms, directly into the formula. The same goes for C1 in pF.



Last edited by Rune on Mar Mon 19, 2012 7:25 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 19, 2012 7:20 pm
Member

Joined: May Tue 30, 2006 8:34 pm
Posts: 169
Location: Akershus, Norway
Rich, W3HWJ wrote:
I was surprised that a cheap DMM, the Harbor Freight 37772, reads within 5% on a 100 pF silver mica capacitor.

Thats quite unusual. Even my 500 dollar DMM doesn't do that.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Tue 20, 2012 5:44 pm
Member
User avatar

Joined: Jul Sun 17, 2011 1:11 am
Posts: 2733
Location: Los Angeles
Rune wrote:


Quick-n-dirty, I love it ! Thank you. :mrgreen:

_________________
If the women don't find you handsome, they should at least find you handy ! - Red Green


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Tue 20, 2012 10:46 pm
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 1542
Location: Saskatoon
Rune didn't give the instructions for operating the bridge, which may not be obvious for those who've never used a bridge type measuring circuit:

Once the unknown capacitor Cx is connected, and the audio source connected, you adjust resistance R1 until you get a null (minimum audio) in the phones. Then, the value of the unknown capacitance is given by:

Cx=(R1 x C1)/R2

(The formula is shown in Rune's photo, but it's a bit fuzzy and may not be easy to read.)


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Wed 21, 2012 10:02 am
Member

Joined: Jun Sat 02, 2007 1:37 pm
Posts: 1348
Location: Ennismore, Ontario
BobWeaver wrote:
Rune didn't give the instructions for operating the bridge, which may not be obvious for those who've never used a bridge type measuring circuit:

Once the unknown capacitor Cx is connected, and the audio source connected, you adjust resistance R1 until you get a null (minimum audio) in the phones. Then, the value of the unknown capacitance is given by:

Cx=(R1 x C1)/R2

(The formula is shown in Rune's photo, but it's a bit fuzzy and may not be easy to read.)



Thanks Bob.

_________________
Brian

I came into this world with nothing...
I have been able to keep most of it.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Wed 21, 2012 8:45 pm
Member

Joined: May Tue 30, 2006 8:34 pm
Posts: 169
Location: Akershus, Norway
Sorry about that. I was a little bit too quick there.
I'm sure some expressed a ''No you can't'' in front of their monitors when they saw my ''professional'' measurement device yesterday. :lol:
If I remember correctly, Bob, Oerjan and I had a little discussion over at The Radioboard on this little bridge, and I think Bob can confirm it is working very well.
Yes, it is meant as a little device someone can lash up in a hurry, to measure a variable capacitor for example, if a more convenient instrument isn't available, or if you absolutely don't want to spend money on one.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Thu 22, 2012 12:10 am
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 1542
Location: Saskatoon
Yes, I can confirm that these work extremely well. Better than most people would expect.

In fact, you can even substitute a pair of ear bud type phones for the piezo earphone, although it becomes a bit less sensitive.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Thu 22, 2012 1:12 am
Member
User avatar

Joined: Nov Thu 08, 2007 4:37 pm
Posts: 4387
Location: Central Georgia
That's neat!!!.... Might be nice to sub in an AF oscillator and skip the radio???

_________________
JG Jackson
"Uva Uvam Videndo Varia Fit"


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Thu 22, 2012 2:42 am
Member

Joined: Jan Thu 01, 1970 1:00 am
Posts: 1542
Location: Saskatoon
Yes, if you're planning to build a permanent tester. The reason behind using a radio or other audio source is that it saves a bit of time if you're in a hurry to throw something together.


Top
 Profile

 Post subject: Re: Can a variable condenser be accurately measured???
PostPosted: Mar Mon 26, 2012 11:55 pm
Member

Joined: Oct Sat 20, 2007 3:36 am
Posts: 14393
Location: Southern NH, 03076
Quote:
Can I accurately attach my Cap meter and read their result?


Brian, since everybody seems to be telling you everything except what you asked permit me....what capacitor tester are you using? Any decent tester in alignment can measure that variable cap, even one from the 30's.
I often use one from 1946 that I overhauled and its almost as accurate as a digital HP LCR meter originally costing thousands.

Carl


Top
 Profile
